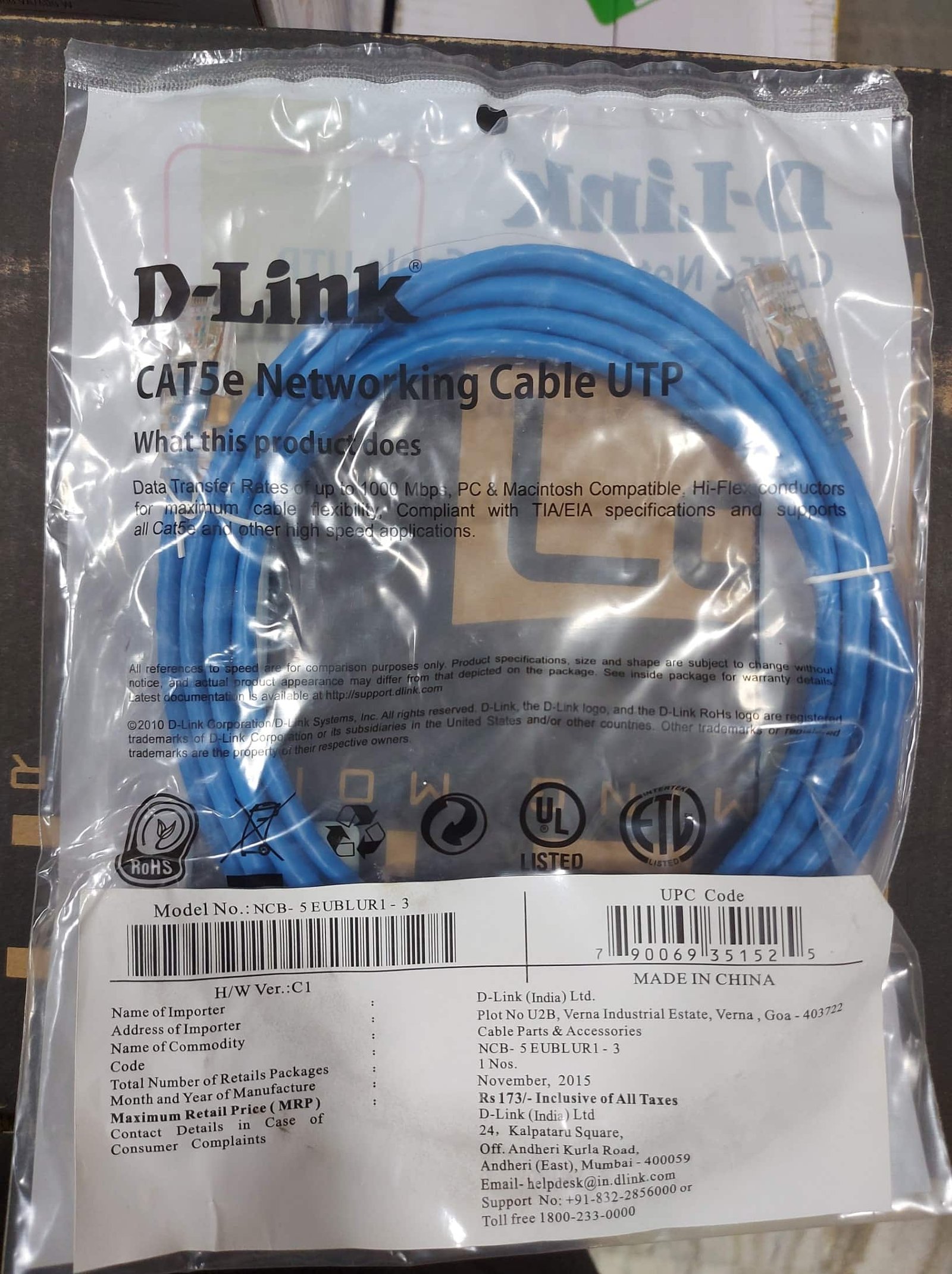

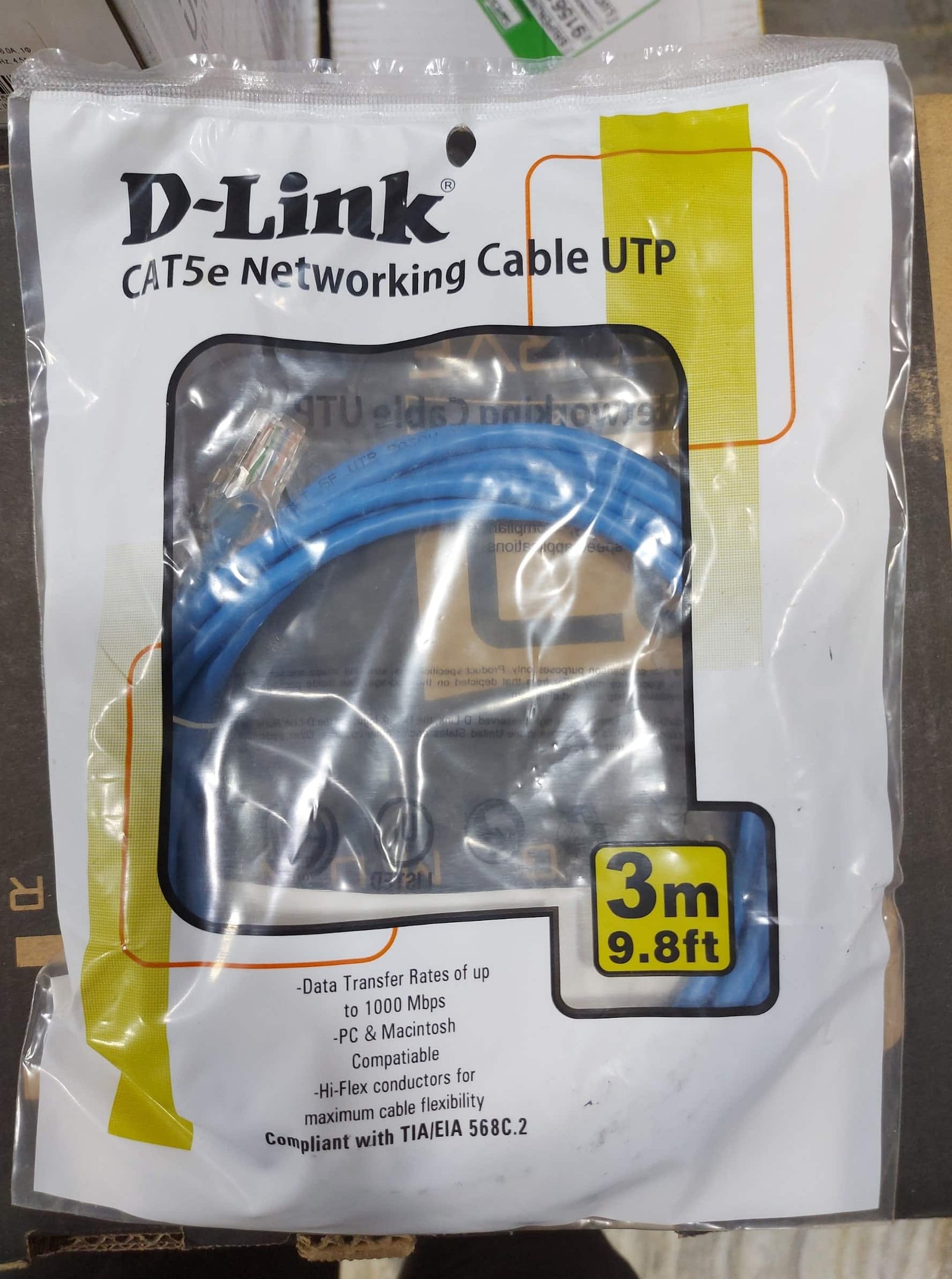

Buying guide for D-Link CAT5E 3M Blue Patch Cord:
Features:
- Whole Diameter: 5mm ±0.2,
- Copper Diameter: 24AWG or 0.5106mm,
- Frequency and Speed: upto 100MHz and Max. Speed 1Gbps at 100M,
- Certification: UL, TIA/EIA 568 C.2 Complaint,
- Insulation: HDPE over Copper Wires, PVC Jacket over and above 4 Pairs,
- Conductor: 4 Pairs of 24 AWG Twisted Solid Copper,
- Color: Blue,
- Shielding: UTP,
- Transmission protocols supported: 2.5GBASE-T, 1000BASE-T,
- Separator: PE, (Polyethylene),
- Operating Temperature Range: – 20°C to +70°C
- Storage Temperature Range: – 0°C to +50°C
- Twists per turn >200,
- ATT = 22 dB/100m, RL = 20.1 dB, NEXT = 35.3 dB, PSNEXT = 32.3 dB, ACRF/ELFEXT: 23.8 dB, ACR = 13.3 dB, PSACR = 10.3 dB, etc.,
- PART CODE: NCB-5EUBLUR1-3,
Manufacturer’s Description
Detailed manufacturer’s description and datasheet are available here.
