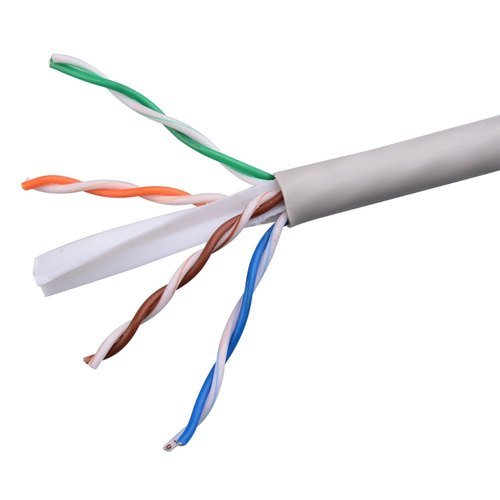

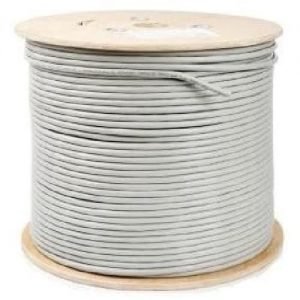

Buying guide for D-Link CAT6A 305M Gray 23AWG Copper:
Features:
- Whole Diameter: 6.9mm ±0.4,
- Copper Diameter: 23AWG or 0.5733mm,
- Weight: Approx 21Kg of total box,
- Frequency and Speed: upto 500MHz and Max. Speed 10Gbps at 100M,
- Certification: UL, ETL, RoHS, TIA/EIA 568 C.2 Complaint,
- Insulation: HDPE over Copper Wires, Special Barrier Polyolefin, FR-PVC Jacket (Fire-Resistant) over and above 4 Pairs,
- Conductor: 4 Pairs of 23 AWG Twisted Solid Copper,
- Higher POE Capacity: up to 100W, CAT6A accepts 802.3af/at/bt of POE power supply,
- Color: Gray/Grey,
- Shielding: UTP,
- Transmission protocols supported: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T,
- Separator: PE, (Polyethylene),
- Operating Temperature Range: – 15°C to +75°C
- Twists per turn >250,
- ATT = 45.3 dB/100m, RL = 15.2 dB, NEXT = 33.8 dB, PSNEXT = 31.8 dB, ACRF/ELFEXT: 13.8 dB, PSACRF = 10.8 dB, etc.,
- PART CODE: NCB-6AUGRYR-305,
Comparison of Ethernet Cables CAT6, CAT6A, CAT5E, CAT3 and CAT7 on speed and distance
Manufacturer’s Description
Detailed manufacturer’s description and datasheet are available here.
HELP AND SUPPORT:
Find LAN Cables and Components here.
Join our Whatsapp Community Here
If you face any issue and feel difficult to choose – kindly click on MAKE AN ENQUIRY just above the description or you may write an email to us with Name, Contact to: contact@networkitstore.in and we will get back within 24 hours.
ABOUT D-LINK:-
It is multinational manufacturer of networking hardware and telecoms equipment. It was founded in 1986 and headquartered in Taipei, Taiwan. It is the most trusted brand in India in networking. It has fully integrated networking hardware components from switches, wireless devices, cables, etc.
WHERE ARE THE D-LINK SERVICE CENTER IN INDIA?
D-Link has 220 collection centers under 130 locations in India and 34 walk-in service centers currently well distributed over India.
