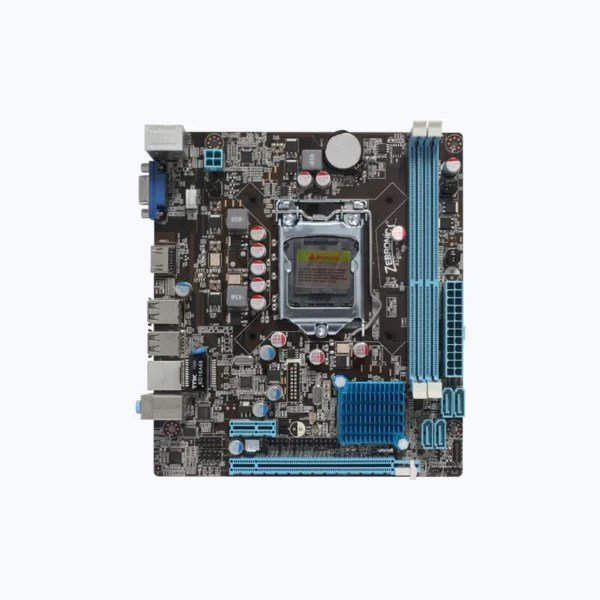

ZEBRONICS H61 Motherboard

ZEBRONICS H61 Motherboard:

SPECIFICATION:

• Processor Support: Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155
• Chipset: Intel® H61Chipset
• Memory Support: 2 DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory
• LAN: Supports Realtek 8106E 10/100 Mbps
• Audio: Realtek 662 3xAudio Jacks for 6 channel High definition audio

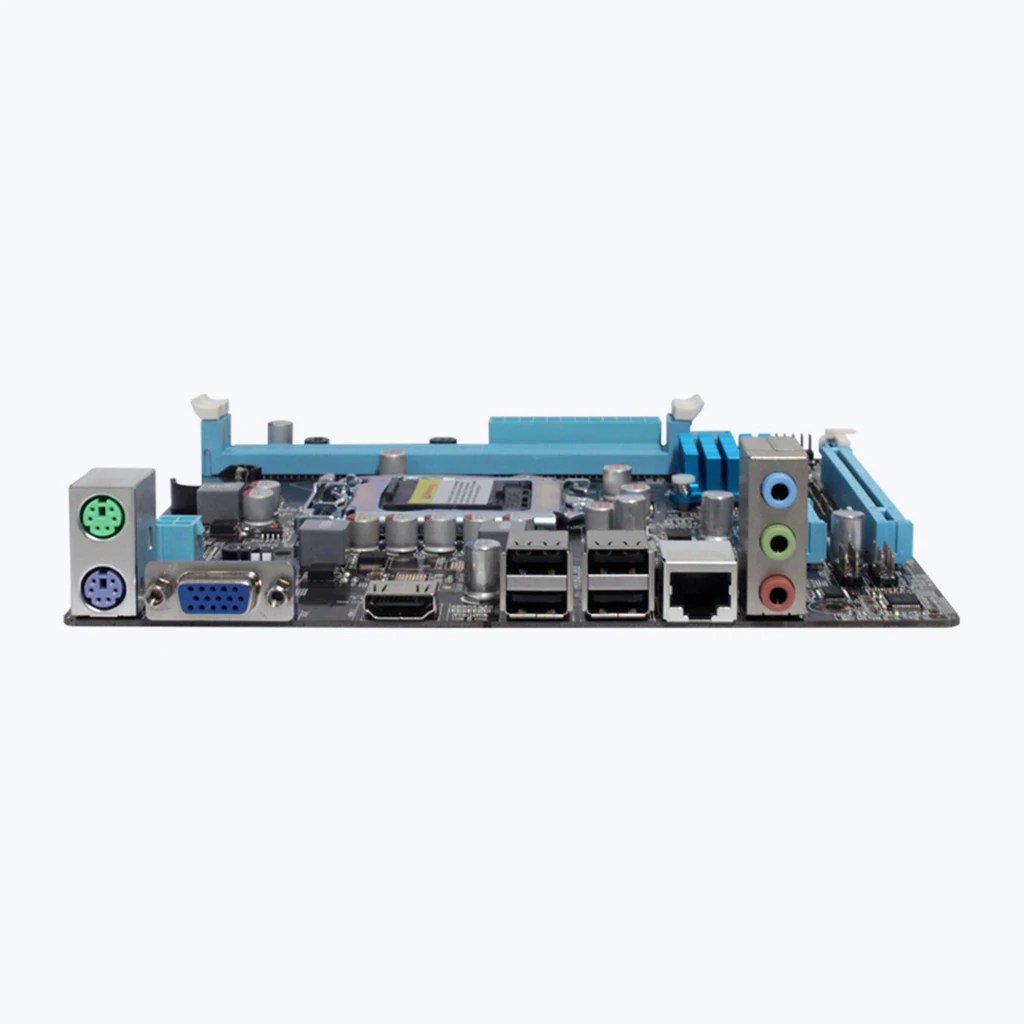

• Back Panel: 1 PS/2 mouse/keyboard port, 1 VGA port, 1 HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks
• On-Board Connectors:
  • 1 x Front panel connector
  • 1 x Speaker connector
  • 1 x Front panel audio connector (2 x 5pin)
  • 4 x USB 2.0 ports
  • 4 x SATA 3Gb/s (SATAII) ports
  • 1 x 4pin CPU fan connector
  • 1 x SYS fan connector
  • 1 x 24-pin ATX power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x 3pin clear CMOS header
• Slots: 1 PCI Express x16 slot, 1 PCI Express x1 slot
